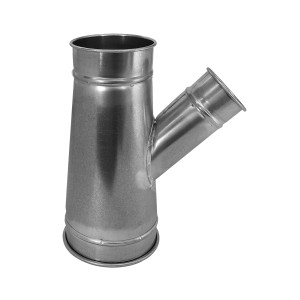

QF® Y-Branch

QF Y-Branch

Nordfab
SKU:
3221
Availability:
Usually ships in 5 - 7 work days. Contact us for expediting.
$222.60
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Y Branches to split air within QF ducting evenly.

Nordfab QF Duct Branches in Y shape (sometimes called “true wyes”) that provide optimal air flow if it's the final, or only, branch in the ducting. It splits the air almost 50/50 which is the closest to even you can get using standard parts.

They're available in 3" - 24" diameters and come standard with 60º between legs, but a 90º angle is also available. When ordering make sure to fill out A, B, and C correctly. Both B & C each must be at least 50% of A, with B or C being at least 80% of the opposite leg. For help calculating what you need, contact us.

Quick-Fit has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Its QF rolled ends for use with QF clamps, allow quick assembly, disassembly and relocation. It clamps together in seconds without welds, bolts, screws, flanges, special tools, precise measurements or specialized skills. So, it cuts installation – and ducting related downtime – by more than 40% over traditional ductwork. See more benefits below.

Product Features

  • 3" - 24" Diameters
    • Some diameter configurations aren't available
  • 60° or 90° angles
  • Y shape that splits the air nearly 50/50
  • Quick, simple assembly

Product Specifications

Diameter 3 - 24 inch
Length A + 4"
Weight 1.5lbs - 53.5lbs
Gauge ≤12":22ga, ≥13":20ga
Material Galv, 304SS
Duct Type Quick Fit Duct
Edge Rolled, 0.2" - 0.4"

Info & Guides

Questions & Answers

Do QF Clamps come with the Y Branch? If not how many do I need to order?
Clamps do not come with this branch. As a rule, you will need one clamp per component ordered.

How do I connect to the end of an existing non QF system?
We offer a full line of adapters to connect to any existing pipe you might have.

When do I need to use stainless steel?
Stainless steel is used in FDA, chemical and high temperature applications.

Still have questions?
Browse our frequently asked questions page or contact us.

Discover the Benefits of Nordfab Ducting, "The World's Fastest Ducting™"

Nordfab Ducting, Quick Clamp

Fast Installation
Quick install and changes. Cuts install time by more than 45% compared to flanged ductwork.

Easy Connection
Simply clamp each piece together. No rivets, screws or welding are needed.

Strong & Leak Tight
High quality galvanized or stainless steel manufactured in the USA with laser welded seams.

Versatile
Use in a wide variety of applications, adapt to your existing ductwork and easily relocate.
