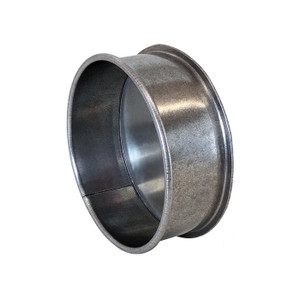

QF End Cap with Birdscreen
NordfabEnd Cap with a Birdscreen to keep foreign objects from entering an open air port.
The End Cap with Bird Screen connects easily with the QF Clamp and is used in situations where openings are needed to allow air to enter or exit a QF ducting system. The bird screen keeps foreign objects from entering the system.
The Birdscreen is constructed of ½" galvanized wire mesh and is available in 3" - 24" diameters.
Quick-Fit ducting has been used in a wide variety of applications, wherever dust collection or fine particulate transfer is required. Its QF rolled ends for use with QF clamps, allow quick assembly, disassembly and relocation. It clamps together in seconds without welds, bolts, screws, flanges, special tools, precise measurements or specialized skills. So, it cuts installation – and ducting related downtime – by more than 40% over traditional ductwork. See more benefits below.
Product Features
- 3" - 24" diameters
- Keeps foreign objects out
- Made with ½" wire mesh
- Quick, simple assembly
Product Specifications
Diameter | 3 - 24 inch |
Length | 2.25", 2", 1.88" |
Weight | 0.25lbs - 2.85lbs |
Gauge | ≤12":22ga, ≥13":20ga |
Material | Galv, 304SS |
Duct Type | Quick Fit Duct |
Edge | Rolled, 0.2" - 0.4" |
Info & Guides
- Technical Data Sheet, QF End Cap with Birdscreen
- Temperature Guide, Nordfab Ductwork
- General Specifications, Nordfab Ductwork
- Installation Guide, Nordfab Ductwork
Questions & Answers
Do QF Clamps come with the end cap? If not how many do I need to order?
Clamps do not come with this end cap with birdscreen. As a rule, you will need one clamp per component ordered.
How do I connect to the end of an existing non QF system?
We offer a full line of adapters to connect to any existing pipe you might have.
When do I need to use stainless steel?
Stainless steel is used in FDA, chemical and high temperature applications.
Still have questions?
Browse our frequently asked questions page or contact us.
Discover the Benefits of Nordfab Ducting, "The World's Fastest Ducting™"
Fast Installation Easy Connection Strong & Leak Tight Versatile |
|
