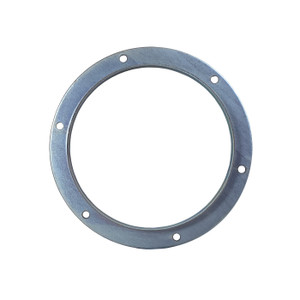

Angle Flange Gasket

Nordfab
SKU:
3263-0300-000000
$4.30
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Very powerful Angle Flange Gaskets to seal ducting together.

Angle Flange Gaskets create a static seal between two flange faces by filling the microscopic spaces and irregularities of the flange faces, and then forming a seal that is designed to keep liquids and gases within the ducting.

The standard gasket is constructed of black nitrile, a conductive material that has a temperature range of -20°F to 250°F. Red Silicone is also available for higher temperature applications as it has a temperature range of -65° to 450°.

For use with Nordfab:

Gasket dimensions should match Angle Flange dimensions and one gasket should be used per joint.

Product Features

  • 3" - 40" Diameters
  • Comes in Black Nitrile or Red Silicone
    • Red Silicone meant for temperatures > 250°F or < -20°F
  • Seals two flange faces together
  • One gasket per joint

Product Specifications

Diameter 3 - 40 inch
Width 1", 1.25", 1.5", 2"
Hole Ø 9/32", 3/8", 7/16"
Material Galv, 304SS

Info & Guides

Questions & Answers

What is the difference between an "angle flange" and a "flat flange"?
An Angle Flange is industry standard. A flat flange is a 1.5" wide flat piece of 3/16" sheet metal not drilled unless you supply a drawing for bolt hole locations.

How do I connect to the end of an existing non QF system?
We offer a full line of adapters to connect to any existing pipe you might have.

When do I need to use stainless steel?
Stainless steel is used in FDA, chemical and high temperature applications.

Still have questions?
Browse our frequently asked questions page or contact us.

Discover the Benefits of Nordfab Ducting, "The World's Fastest Ducting™"

Nordfab Ducting, Quick Clamp

Fast Installation
Quick install and changes. Cuts install time by more than 45% compared to flanged ductwork.

Easy Connection
Simply clamp each piece together. No rivets, screws or welding are needed.

Strong & Leak Tight
High quality galvanized or stainless steel manufactured in the USA with laser welded seams.

Versatile
Use in a wide variety of applications, adapt to your existing ductwork and easily relocate.
