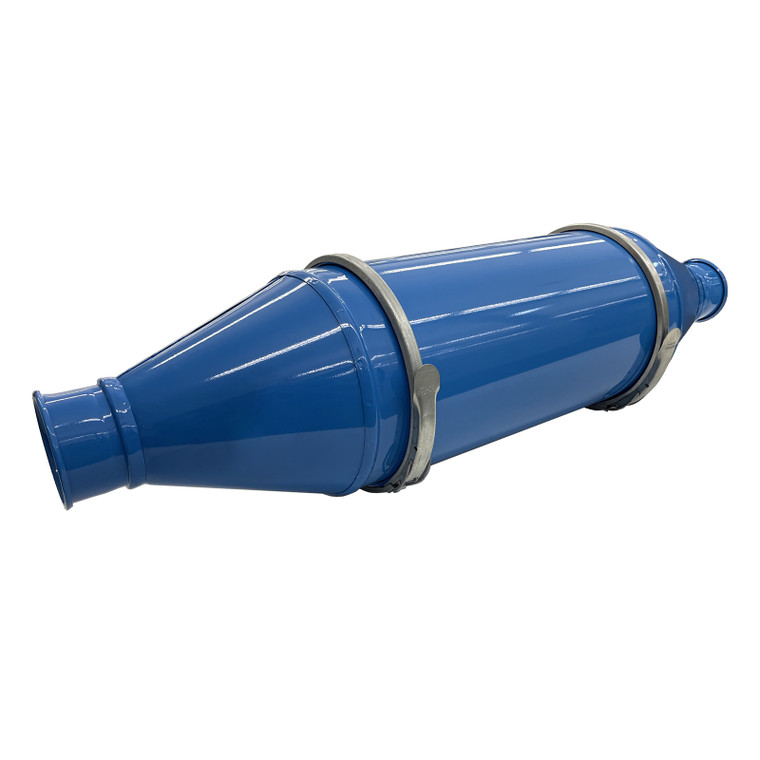

QF® In-Line Spark Trap

QF In-Line Spark Trap

Nordfab
SKU:
3255
$913.80 - $4,313.30
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Spark Trap to disrupt airflow and extinguish sparks within QF ductwork.

Nordfab QF In Line Spark Trap disrupts the laminar airflow which causes sparks to cool and extinguish before they can enter the dust collector with minimal pressure loss. The trap can easily be remove for clean out. There are no moving parts and no power is required for operation.

We recommend that it is placed at least 10 times the diameter away from the dust collector and the source. It's also designed for horizontal mounting into QF ducting systems, or other duct systems with use of an Angle Flange Adapter.

When installed as part of a dust collection system, it greatly reduces the possibility of fire in cyclones / collectors by decreasing the number of sparks which could reach the cyclone or collector through the ductwork. Therefore, it reduces costs and disruptions and improves safety.

Watch the video below to see the spark trap in action.

Product Features

  • 4" - 24" diameters
  • Velocity: 1500-5000 fpm
  • Extinguishes sparks in ducting
  • Greatly reduces the possibility of a fire in cyclones/collectors
  • Horizontal mounting only
  • No moving parts and no power required
  • Duct distance recommended: at least 10 times the diameter away from dust collector and the source
  • Quick, simple assembly

Product Specifications

Diameter 4 - 24 inch
Length nom. 18" - 40"
Height nom. 7" - 38"
Weight 6lbs - 87lbs
Gauge ≤12":22ga, ≥13":20ga
Material Mild Steel
Duct Type Quick Fit Duct
Edge Rolled, 0.2" - 0.4"

Info & Guides

Questions & Answers

Do QF Clamps come with the spark trap? If not how many do I need to order?
Clamps do not come with this spark trap. As a rule, you will need one clamp per component ordered.

How do I connect to the end of an existing non QF system?
We offer a full line of adapters to connect to any existing pipe you might have.

Still have questions?
Browse our frequently asked questions page or contact us.
