Insulated Neoprene Coated Hose

Insulated Neoprene Coated Hose

BISCO - Extra Flex
SKU:
4279
Availability:
Lead times vary. Contact us for in stock options.
$30.98 - $125.43
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

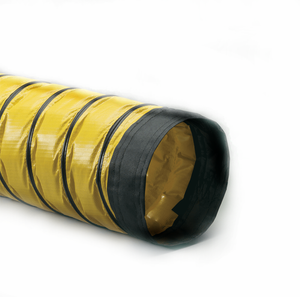

Insulated Neoprene Coated Hose.

Two single ply, yellow, neoprene coated polyester fabric plies protecting an insulation barrier reinforced with a spring steel wire helix and a black external PVC coated polyester wear strip.

This hose is great for air handling applications. It's constructed with 1-inch fiberglass insulation, a wear strip for additional external abrasion & drag resistance, and a sewn cuff on each end. It's also manufactured with flame retardant materials.

This hose has high tensile strength and great compressibility which allows for convenient storage/transport.

Key Features
  • Two plies of single ply fabric
  • Coated fabric construction
  • External wear strip
  • 1 inch Fiberglass Insulation
  • Flame Retardant materials
  • Great compressibility
  • High tensile strength
  • Sewn Cuffs on each end

Specifications
  • Size Range: 4" to 24"
  • Colors: Yellow with Black wear strip
  • Temperature Range: -40°F to 250°F

Applications

Air

Flame Retardant

Ventilation / HVAC

Technical Data

4" ID Approx Weight: 0.65 lbs/ft
CL Bend Radius: 2.75 in
Compression Ratio: 3:1
Negative Pressure: 8 inHg
Working Pressure: 8.2 psi
8" ID Approx Weight: 0.895 lbs/ft
CL Bend Radius: 5 in
Compression Ratio: 5:1
Negative Pressure: 6.1 inHg
Working Pressure: 3.5 psi
10" ID Approx Weight: 1.09 lbs/ft
CL Bend Radius: 6 in
Compression Ratio: 5:1
Negative Pressure: 3.16 inHg
Working Pressure: 2.78 psi
12" ID Approx Weight: 1.3 lbs/ft
CL Bend Radius: 7.25 in
Compression Ratio: 5:1
Negative Pressure: 1.8 inHg
Working Pressure: 2.3 psi
14" ID Approx Weight: 1.488 lbs/ft
CL Bend Radius: 8.5 in
Compression Ratio: 5:1
Negative Pressure: 1.2 inHg
Working Pressure: 2 psi
16" ID Approx Weight: 1.687 lbs/ft
CL Bend Radius: 9.6 in
Compression Ratio: 5:1
Negative Pressure: 0.78 inHg
Working Pressure: 1.74 psi
18" ID Approx Weight: 1.886 lbs/ft
CL Bend Radius: 10.8 in
Compression Ratio: 5:1
Negative Pressure: 0.55 inHg
Working Pressure: 1.55 psi
20" ID Approx Weight: 2.084 lbs/ft
CL Bend Radius: 12 in
Compression Ratio: 5:1
Negative Pressure: 0.4 inHg
Working Pressure: 1.4 psi



Technical information is also shown on the second product image above. The data is based on 2 ft. straight lengths of hose at 72°. Contact us for more detailed data.
